Hyper Active 860™



Meet the new feather weight champion of the world!  At less than 26.5 lbs, this incredible active speaker has a DSP-controlled Class D amplifier that delivers 860 Watts (1,650 Watts max) of 60 Hz – 19,000 Hz, with 130 dB of continues SPL!   All of this in a 22” x 9.8” x 6.3” package!  Don’t turn down large events because you do not have an 18-wheeler and a large crew.





Hyper Active 860™



Power, RMS                                       700 W + 160 W

Power, Max.                                       1,400 W + 250 W

Impedance                                          4 Ω + 4 Ω / 16 Ω + 16 Ω

Operating Frequency Range                 60 Hz – 19 KHz +/- 3 dB

Frequency Range                                70 Hz – 20 KHz +/- 3 dB

Sound Pressure Level, 1 W @ 1 M       99 dB (low-mid) + 113 dB (high)

Maximum Sound Pressure Level           130 db continues – 136 dB peak

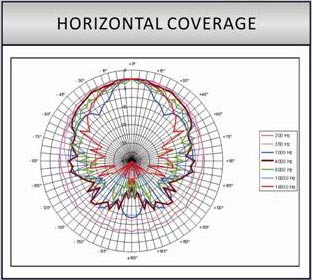

Horizontal Coverage                             120°

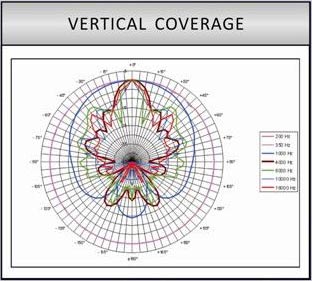

Vertical Coverage                                15°

Low-Mid Frequency Transducers           2 x 8” Neodymium Speakers with 3” Voice Coil

High Frequency Transducers                2 x 1” Neodymium Planar Wave Drivers with 1.75” Voice Coil

Protection                                           Dynamic Limiter; Current; Temperature; Short Circuit

Amplifiers                                           350 W x 2 channels, 4 Ω; 160 W, 8 Ω

Crossover                                           DSP controlled

Protection                                           Dynamic limiter, over current, temperature, short circuit

Dimensions                                         22” x 9.8”x6.3 (56 x 25 x 16 cm)Weight                                                26.4 lb (12 kg)
