This truss system comes in form
of a modular kit for you to build it piece by piece.
You can change the length and shape of the truss
in short segments.
The seamless structure gives it an amazing strength at an incredibly
light weight. The heat resistance is up to 382 degrees Fahrenheit!

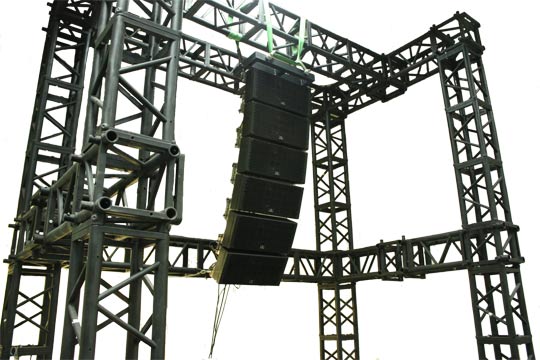

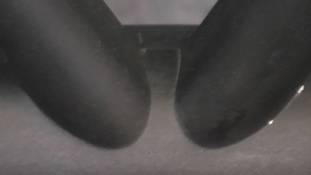

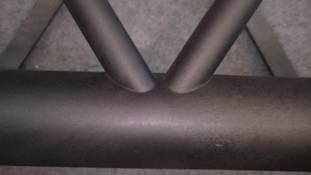

Take a look at joints.
|
MODEL
CODE |
SIZE |
MAIN TUBE DIAMETER |
WEIGHT |
|
in |
mm |
in |
mm |
lb |
kg |
|
Square Truss 20 |
4.6 x 4.6 x 20.7 |
117.5 x 117.5 x 525 |
0.8 |
20 |
2.1 |
0.96 |
|
Square Truss 32 |
8.7 x 8.7 x 20.8 |
220 x 220 x 528 |
1.3 |
32 |
3.7 |
1.7 |
|
Square Truss 50 |
11.4 x 11.4 x 21.3 |
289 x 289 x 540 |
2 |
50 |
10.5 |
4.75 |
|
Square Connector 20 |
6.6 x 6.6 x 6.6 |
167.5 x 167.5 x 167.5 |
0.8 |
20 |
1 |
0.46 |
|
Square Connector 32 |
10.9 x 10.9 x 10.9 |
276 x 276 x 276 |
1.3 |
32 |
4 |
1.8 |
|
Square Connector 50 |
14.5 x 14.5 x 14.5 |
369 x 369 x 369 |
2 |
50 |
11.7 |
5.3 |
|
Triangle Truss 32 |
8.7 x 7.5 x 20.8 |
220 x 190.5 x 528 |
1.3 |
32 |
2.8 |
1.26 |
|
Triangle Truss 50 |
11.4 x 10.1 x 21.3 |
289 x 257 x 540 |
2 |
50 |
7.9 |
3.9 |
|
Triangle Connector 32 |
10.9 x 10.9 x 10.9 |
276 x 276 x 276 |
1.3 |
32 |
3.7 |
1.7 |
|
Triangle Connector 50 |
14.4 x 14.5 x 14.5 |
369 x 369 x 369 |
2 |
50 |
14.3 |
6.5 |
|
Would it be fair if we asked you to
compare with typical trusses?
The TUV-certified Hyper Truss
comes in square and triangle models, with varying tube sizes.
|
MODEL |
SPAN |
CONCENTRATED LOAD |
DEFLECTION |
|
M |
FT |
KG |
LB |
MM |
IN |
|
Square Truss 50 |
1 |
3.28 |
600 |
1,323 |
15 |
0.59 |
|
|
2 |
6.56 |
500 |
1,102 |
20 |
0.79 |
|
|
3 |
9.84 |
350 |
772 |
50 |
1.97 |
|
|
4 |
13.12 |
250 |
551 |
60 |
2.35 |
|
|
5 |
16.40 |
200 |
441 |
70 |
2.76 |
|
Square Truss 32 |
1 |
3.28 |
250 |
551 |
10 |
0.39 |
|
|
2 |
6.56 |
180 |
397 |
20 |
0.79 |
|
|
3 |
9.84 |
100 |
220 |
30 |
1.18 |
|
Triangle Truss 50 |
1 |
3.28 |
500 |
1,102 |
10 |
0.39 |
|
|
2 |
6.56 |
400 |
882 |
20 |
0.79 |
|
|
3 |
9.84 |
300 |
661 |
40 |
1.57 |
|
|
4 |
13.12 |
200 |
441 |
50 |
1.97 |
|
|
5 |
16.40 |
150 |
331 |
60 |
2.36 |
|
Triangle Truss 32 |
1 |
3.28 |
180 |
397 |
20 |
0.79 |
|
|
2 |
6.56 |
120 |
264 |
40 |
1.57 |
|
|
3 |
9.84 |
80 |
176 |
70 |
2.76 |
|
MODEL |
SPAN |
SYMETRICAL LOAD |
TOTAL LOAD |
DEFLECTION |
|
M |
FT |
KG |
LB |
KG |
LB |
MM |
IN |
|
Square Truss 50 |
6 |
19.68 |
30 |
66 |
180 |
396 |
60 |
2.36 |
|
Triangle Truss 50 |
6 |
19.68 |
25 |
55 |
150 |
330 |
90 |
3.53 |
The above results were obtained after 10
minutes under load. For Square Truss 50 and Triangle Truss 50 with
6 meter/19 feet, the leads were placed at 6 points, evenly
distributed on the truss. The test for various span widths were
done with the load placed at the center of each span.
Fire resistance: 194˚ C/382˚ F
|
