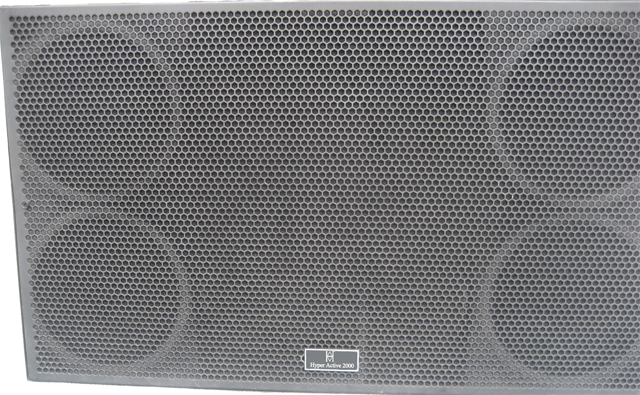

Hyper Active
2000
Your
wishes have come true with a compact full-range active line array
system that literally blows any line array active system. Save a
small fortune not only in the system cost, but also in installation
time and effort.
Specifications
|
Power, RMS |
2,000 Watts
(1000 Low + 600 Mid + 400 High) |
|
Power, Maximum |
3,000 Watts |
|
Impedance |
LF 4 Ω
MF 8Ω
HF 8Ω |
|
|
|
|
Frequency Range |
40 Hz -18 KHz,
± 3dB |
|
|
SPL 1 W @ 1
meter |
LF 108 dB
MF 108 dB
HF 116 dB |
|
|
|
|
|
|
Maximum SPL |
140 dB peak |
|
Speakers |
LF, 4×10"
Neodymium cone-voice coil 64"mm
MF, 4×6.5"
Neodymium cone-voice coil 44"mm
HF, 4×1"
Neodymium cone-voice coil 44" mm |
|
Horizontal
Coverage |
120° |
|
Vertical
Coverage |
15°, with
2.5° to 10° manually adjustable brackets |
|
Crossovers |
Low-Mid,
external DSP controller preset
High,
internal 24dB octave 2.5 KHz |
|
|
|
|
Amplifiers |
Low, 1600
Watts @ 4Ω
Mid/High, 1600 Watts @ 4Ω |
|
|
|
|
Power, 3,200
W |
Low, 1600
Watt @ 4 Ω
Mid/High, 1600w W @ 4 Ω
|
|
|
|
|
Protection |
Over
current, short circuit, temperature |
|

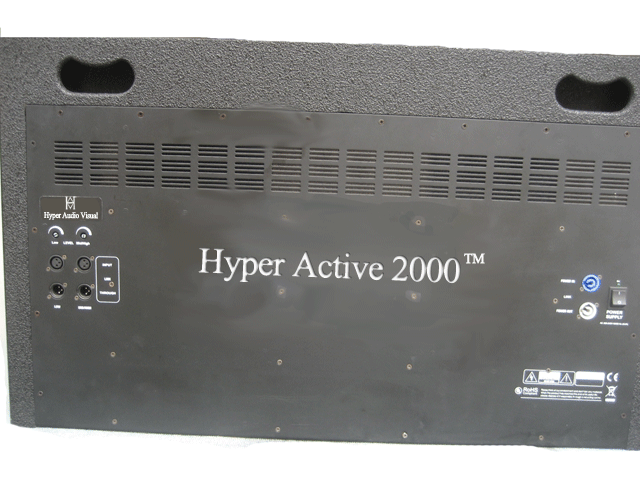

Input
Connectors |
3-pin
balance XLR IN/OUT |
|
AC
Connectors |
Power Con
IN/OUT, 210-240V/50Hz, or 100-120V/60Hz |
|
Dimensions |
7.8" x 22" x 35.4" / 20 x 56 x
90 cm |
|
Weight |
198.4 lb /90 kg |
|
|
