Features

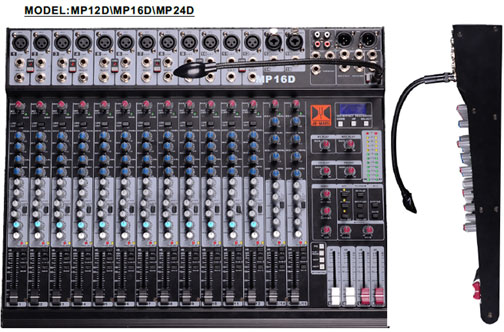

• 3 models available (MP12D, MP16D and MP24D).

• Built-in USB sound card for connecting to any computer for audio record and playback.

• Built-in MP3 module for play with a SD flash card or USB stick.

• Either 8 channels (MP12D), 12 channels (MP16D) or 20 channels (MP24D) of microphone/effects returns.

• 1 set of main stereo outputs, 2 sets of groups outputs, 4 sets of auxiliary outputs and 1 DSP effects processor.

• External power supply (low noise).

• Suitable for conference rooms, multi-function halls, etc.

• Digital optical and coaxial AES3 output.

• Equipped with LED DJ lamp.

Specifications

Model	MP12D	MP16D	MP24D
Mono Input Channel	8 channels	12 channels	20 channels
Stereo Input Channel	2 group(4 channels Mono)
Mono Insert Channel	8 channels	12 channels	20 channels
Phantom Power for MIC	+48V
Output Channel	1 main output channels;2 group output channels;4 aux output channels; 1 CD/TAP output channels;1 stereophone output channel;USB output;MP3 output
Frequency Response	20Hz~20KHz ±0.5dB
Mono MIC to Main Output Max Gain	60dB±2dB
Mono Line to Main Output Max Gain	40dB±2dB
Stereo Line to Main Output Max Gain	20dB±1dB
Overhearing	-72dB @ 20KHz
Left &Right Overhearing	-66dB @ 20KHz
S/NR	80dB @ 0dB
Max Output Level to Main Output Channel	24dB±1.5dB
Max unbalance Group Output \ Main Output Channel	18dB±1.5dB
Aux Max unbalance Output	18dB±1.5dB
CD/TAPE Max unbalance Output	18dB±1.5dB
Effects Max unbalance Output	18dB±1.5dB
Earphone Output	12dB/0.25W@32Ω 18dB@10KΩ 20Hz～20KHz
Gain Inequality	≤2dB
THD	≤0.02% @ 0dB 1KHz
Mono Channel EQ
Hight\Sweep Mid\Low	14KHz、200Hz~8KHz 、80Hz
Frequency swing & Gain	Frequency swing <8%，Gain:±15dB
Stereo EQ
Hight\Sweep Mid\Low	20KHz、3KHz 、500Hz、20Hz
Frequency swing & Gain	Frequency swing <8%，Gain:±15dB
9 Main Output ot GEQ:
Effector	2 DSP of 21 different Effects:HALL,ROOM,PLATE,AMBIENT,GATED,REVERS,VOICE, DEL&REV,ECHO 40、ECHO 50,DELAY,CHORUS,CHO&DEL,CHO&REV,FLANGER,FLA&DEL, FLA&REV,TREMOLO,TRE&REV,WAH WAH,WAH &REV
Clipping indicator light	Indicator 3dB earlier than cutting wave level
Group&12 Main Outputs Levels indicator LED	+6dB,+3dB,0dB,-3dB,-6dB,-9dB,-12dB,-15dB,-18dB,-24dB,-30dB,-36dB
Power Supply&Power Consumption	110V～/220V～/50Hz/60Hz，≤50W
Power of Amplifier	N.A.
The Dimension of External Power Supply	85mm*60mm*120mm
Product Dimension (W×D×H)	296×416×71mm	416×416×71mm	536×416×71mm
Net Weight	6.8kg	7.8kg	9kg
Shipping Dimension (W×D×H)	566X486X231mm/0.0635m3	686X486X231mm/0.077m3	926X486X231mm/0.1040m3
Gross Weight	7.5kg	8.8kg	10.2kg
