Features\

• Using Single Chip Micro Computer(MCU) controller. The delay time is programmable & more precise reliably.

• 8 channels and 20KW Power supply. Each channel has of independent EMI-Power Filter , CE certificate approved.

• Using Triphase 5-pin professional socket, Diphase & Triphase are compatible.

• LED voltage meter & LED visual operational interface display the voltage of each line, delay time, power sequence.

• With USB lamp

• Every output channel can be turned off immediately .

• Password function.

• Programming function. Remote control function: the remote control distance is up to 1km.
  Link In & Link Out function .

• Overload Voltage Alarm function: It alarms whenever the voltage is out of the range which you setup.

• Multi-sockets meet your different plugs

Specifications

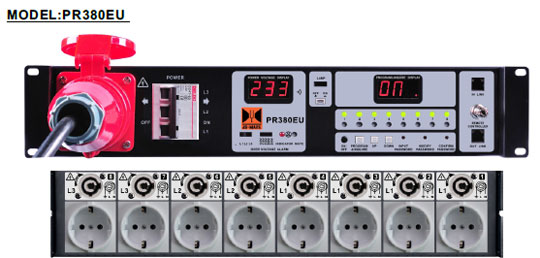

Model	PR380
Voltage	Single-phase:110V or 220V(±20%) Triphase：190V or 380V
Power Frequency	50Hz or 60Hz(±5%)
Power Input	Diphase&Triphase,5-pin industrial socket, 32A input
Protection	Overload current protection & shot protection
Voltage Meter	3 characters LED real-time display, ±1% no-load accuracy, ±1% accuracy of full- load
Display	3 characters LED voltage meter 3 characters LED program screen
Sequencing Channel	8 pairs of sequence channels of independent control.
Power Output	8 pairs of outputs, connected with audio load,each pair of audio output will not exceed 40A, connected with pure resistance.
Time Sequence	Programable
Single-way Switch	With Single-way switch, any channel can be turgently
Voltage setup error	5%
Overload voltage accuracy	±1% of no load accuracy, ±1% of accuracy of full load
Grounding Resistance	R≤100mΩ
The height of Unit	2U
Product Dimension (WxDxH)	482x400x88mm
Net Weight	10.25kg
Shipping Dimension (WxDxH)	1PC:607×183×524mm/0.0582m3 3PCS:622×599×539mm/0.2008m3
Gross Weight	1PC:11kg 3PCS:33kg
