KP3 Series Digital Karaoke Processor

Features
-
96k Hz sampling
frequency, 24-bit A/D and D/A converter, 32-bit DSP processor.
-
2-way audio signal
input for each channel input’s sensitivity can be selected, the
5 microphone inputs and a standard 3.1-or 5.1-channel output.
-
Music signal options
include a optical and coaxial input (and each output has an
optical out). Can be connected to the computer via USB, WIFI or
wired network interface (remote infrared control).
-

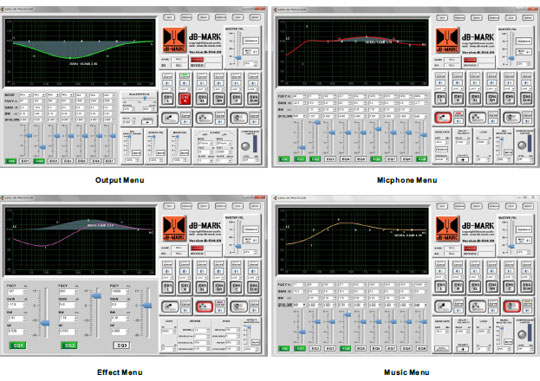

Full access to
features can be had either by the hardware interface or
computer-software interface.
-
Unit can store up to
20 groups of device-data storage, and store up to 10
group-effects (and also transfer data to other units.
-
The lock function
(with password) allows for peace of mind against unwanted or
unauthorized changes to valuable parameter settings.
-
The LCD screen and
6-segment LED display offer accurate digital input and output
with level meters, the mute and edits.
-
Effects module,
microphone volume, music volume and effect volume can be full
adjusted and stored.
-
Each input/output
has delay, phase control and mute settings; The maximum input
delay is 30ms (and the maximum output delay of up to 60ms).
-
Effect have with
three band parametric equalizer and a pair of high and low pass
filters, echo, and all effects can be adjusted and stored.
Specifications
|

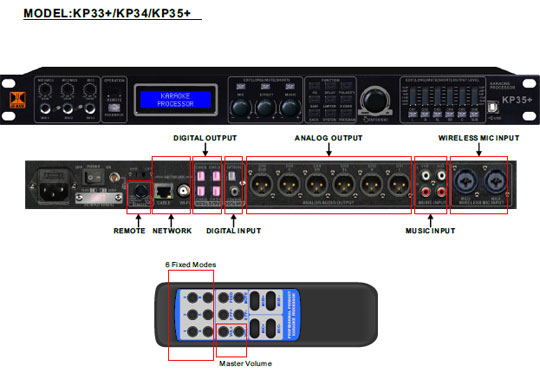

MODEL |
K33+/KP34/KP35+ |
|
Input Channel & Socket |
Three 1/4” phono, 3 groups of 5-channel microphone input, a
set of optical fiber input a set of coaxial input. |
|
Output Channel & Socket |
KP33+: 3.1 channel male output; KP34: 4 channel male output:
KP35+: 5.1 channel male output. |
|
Input Impedance |
Balance: 20KΩ |
|
Output Impedance |
Balance: 100Ω |
| PC Com Port |
One
USB Com Port on front panel |
|
CMRR |
>70dB(1KHz) |
| Input Range |
≤+25dBu |
|
Frequency Response |
20Hz-20KHz(-0.5dB) |
| S/N R |
>110dB |
|
THD |
<0.01% OUTPUT=0dBu/1KHz |
| Crosstalk of
Channels |
>80dB(1KHz) |
|
Functions of Input Channels |
|
|
Input Mute |
Each
channel has Independent Mute Control |
|
Input Delay |
Each
channel has Independent Delay Control Range:0—30ms.stepover
@1ms |
|
Input Polarity |
Same
Phase + or reversed Phase - |
|
Input EQ |
Music and Mic are set with 9 Bands Parametric EQ. Central
Frequency Point:20Hz-20KHz, BandWidth:0.01oct-3oct,stepover
is 0.01oct. DefaultFrequency:EQ140Hz ,EQ280Hz,
EQ3160Hz,EQ4317Hz, EQ5632Hz, EQ6126Hz,EQ72515Hz, EQ85018Hz,
EQ910KHz. Also, High-cut and Low Cut Filter is added.
|
|
Input Gain |
Both
Music and Mic have independent Gain Control from 0% -100% |
|
Limiter |
Both
Music and Mic have independent Limiter Control, -30dBu
-+20dB,stepover,0.1dBu |
| Feedback |
Mic
comes with 4 levels Feedback functions |
|
Functions of Output Channels |
|
|
Output Mute |
Each
channel has Independent Mute Control |
|
Output Polarity |
Same
Phase + or reversed Phase - |
|
Output EQ |
Each
Output Channel can be set up as 7Bands EQ. PEQ and GEQ Modes
are available for choice . Under PEQ, the adjustable
paremeters :LO-EQ1 ( bass boost or low cut), H1-EQ15 (High
Boost or High Damp ) are the Frequency Points adjustable
Filiter, the Frequency Points are adjustable. Slope can
choose 12dB/oct , 24dB/oct, 36dB/oct and 48Db/oct. Others
are 13Bands Parametric EQ and there are 239 frequency points
totally. Band Width: 0.01oct-3oct, step is 0.05oct.
Gain:-40Db-+20Db,step is 0.1dB. When set as GEQ, the
functions are the same as when set as PEQ. Change to be
graphical engineering EQ with fixed 31Bands and 1/3 octave |
|
Output Gain |
Each
Channel has independent Gain Control. Adjustable Range
0%-100% ,stepover 1% 0.5dB |
|
Output Delay |
Each
channel has Independent Delay Control Range:0—1000ms
stepover 21us@<10ms; stepover 84us@10-20ms;
stepover:0.5ms@>20ms |
|
Crossover |
Each
Channel can be set up LPF and HPF independently.Adjustable
Parameters: Filter Types (Linkwitz-Riley/Besse/Butterworth )
Frequency Turning Point:20Hz-20KHz, 239 Frequency Points
Decay of Slope:12dB/oct, 18dB/oct, 24dB/oct, 48dB/oct
|
|
Limiter |
Each
Channel can be set up limiter independently. Adjustable
Parameters: Threshold Value:-20dBu-+20dBu
Stepover:0.5dBu@starting time:0.3ms-100ms Stepover<1ms
@0.1ms, Stepover>1ms@1ms |
|
Effector |
1M
of Memory ,3-Bands Parametic EQ guarantees Real Effect
Processor |
| Processor |
96KHz Sampling frequency, 32-bit Floating-Point DSP |
|
Display |
Resolution of 144 * 32 character LCD points and 6-segment
LED display accurate digital input / output level meter,
mute and edit status |
| Power |
≤30W |
|
Power Supply |
AC110V/220V 50/60Hz |
| Product
Dimension (W×D×H) |
482×200×44mm |
|
Net Weight |
3.75kg |
| Shipping
Dimension (W×D×H) |
562X362X98mm/0.0199m3 6PCS:576X375X612mm/0.1322m3 |
|
Gross Weight |
1PC:5.45(kg) 6PCS:34.5(kg) |
